Solar Inverter Duty Transformers
OVERVIEW

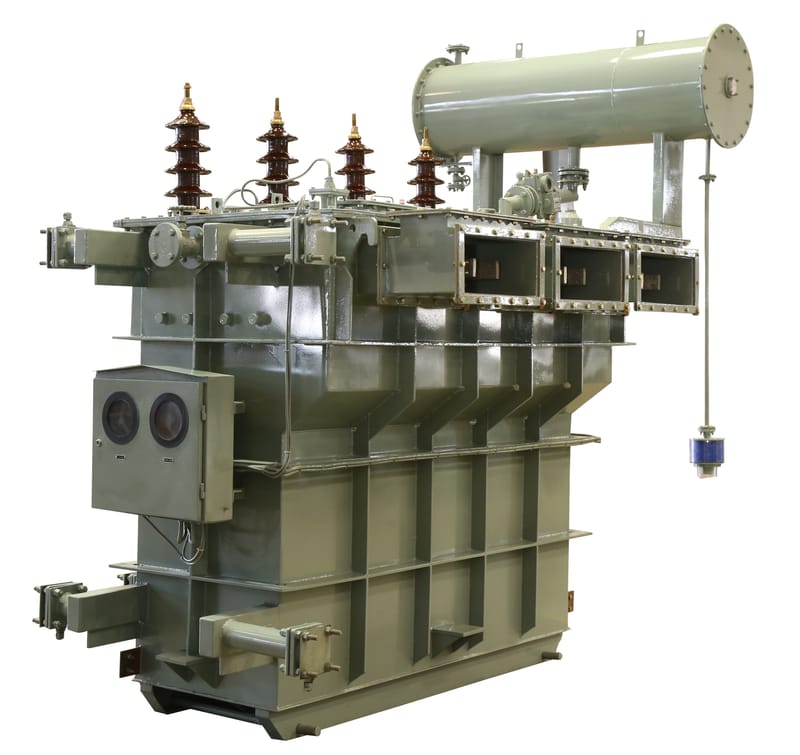

NUCON developed Inverters duty transformers for solar applications, which operate at the fundamental frequency of an alternating system. These are designed for one or more output winding connected to the inverters load. Owning to multiple outputs, multiple inverters paralleled to the PV arrays are directly connected to these transformers and reduces the project cost without compromising any of the transformer functions.
We offer Inverters duty transformers having three-windings and five-windings construction specially designed for grid connected photovoltaic systems. Extra care is taken in design and manufacturing of inverter duty transformers to address the harmonics that are usually to appear in the transformer windings.
These transformers are designed according to any specific customer requirements regarding voltage, power, low losses, sound level, operating conditions and more. Special attention is given to people, environmental impact and safety issues.
The transformer's primary voltage is at the low voltage side and the secondary is at the medium voltage side.
The input voltages usually take values 380 V or 400 V and the medium voltage varies according to the feeding network voltage (i.e.11, 33kV).
APPLICATIONS
Solar Power Generation by Photovoltaic System
These Inverters duty transformers are the ideal solution for photovoltaic systems. The technology used along with the appropriate sizing of the core, the framework and the high-quality materials results in the most suitable product in terms of quality, reliability, efficiency and cost effectiveness. Three & five winding transformer features include:
- Galvanic isolation between the solar inverter and the feeding network
- Voltage step-up from the inverter output to the MV feeding network
- Wound magnetic core for:
- Standard or low losses
- Minimum sound levels and low inrush current
NUCON EDGE
• Proven technology of CG Global design having superior short circuit withstand Capability.
• Manufacturing technology with automatic SCADA controlled CNC machines for maintaining process parameters during winding and achieving high quality electric and mechanical connections.
• All the ratings are type tested as per IS: 2026.
• NUCON is partnering with global leaders for exploring potential of solar energy & introducing advance technology.
